GNU Radio M17 protocol implementation
12 Commits
2 Branches
0 Tags
3.2 MiB
Python 55.8%
CMake 41.5%
C 1.7%
Shell 0.8%
C++ 0.2%





Go to file
jmfriedt ba2f02b23f correct handling of array index to avoid segfault 2023-02-22 09:42:12 +01:00
M17_Implementations@cad279a3eb submodule version 2023-02-21 07:33:40 +01:00
apps initial commit GNU Radio 3.8 2023-02-20 18:29:20 +01:00
cmake initial commit GNU Radio 3.8 2023-02-20 18:29:20 +01:00
docs initial commit GNU Radio 3.8 2023-02-20 18:29:20 +01:00
examples correct handling of array index to avoid segfault 2023-02-22 09:42:12 +01:00
grc Debug flag tested as functional on GNU Radio 3.8 2023-02-22 08:07:14 +01:00
include/m17 Debug flag tested as functional on GNU Radio 3.8 2023-02-22 08:07:14 +01:00
lib correct handling of array index to avoid segfault 2023-02-22 09:42:12 +01:00
python initial commit GNU Radio 3.8 2023-02-20 18:29:20 +01:00
swig initial commit GNU Radio 3.8 2023-02-20 18:29:20 +01:00
.gitmodules Initial commit of submodule 2023-02-20 17:32:52 +01:00
CMakeLists.txt initial commit GNU Radio 3.8 2023-02-20 18:29:20 +01:00
LICENSE Initial commit 2023-02-20 09:07:25 +01:00
MANIFEST.md initial commit GNU Radio 3.8 2023-02-20 18:29:20 +01:00
README.md validation on GNU Radio 3.8 2023-02-21 07:54:16 +01:00

README.md

Compiling:

cd build
cmake ../
make -j12
sudo make install

will finish with a statement such as

-- Set runtime path of "/usr/local/lib/python3/dist-packages/m17/_m17_swig.so" to ""

meaning that variables must be set to help GNU Radio Companion find the Python libraries:

export LD_LIBRARY_PATH=$LD_LIBRARY_PATH:/usr/local/lib/x86_64-linux-gnu/
export PYTHONPATH=/usr/local/lib/python3/dist-packages/

where the LD_LIBRARY_PATH setting results from

find /usr/local/ -name '*m17.so*' -print

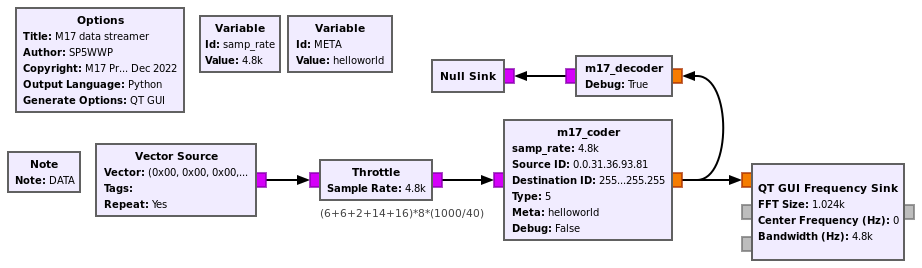

When running the flowgraph found in examples

the output should be

Generating: '.../gr-m17/examples/m17_streamer.py'

Executing: /usr/bin/python3 -u .../gr-m17/examples/m17_streamer.py

new meta: helloworld
new SRC ID: 0 0 31 36 93 81
new DST ID: 255 255 255 255 0 0
New sampling rate: 192000,000000
new type: 0 5
got_lsf=1
LSF
DST: GAA RTXTT SRC: S0-P7JBRI TYPE: 8EE0 META: CEF0BE521FF9BA43577F6F7A9AA1 LSF_CRC_ERR
LSF
DST:           SRC: AB1CDEBRI TYPE: 0500 META: 68656C6C6F776F726C6400000000 LSF_CRC_OK
FN: 0000 PLD: 00000000000000000000000000000000
FN: 003D PLD: 00000000000000000000000000000000
FN: 003E PLD: 00000000000000000000000000000000
FN: 003F PLD: 00000000000000000000000000000000
FN: 0040 PLD: 00000000000000000000000000000000
DST:           SRC: AB1CDEBRI TYPE: 0500 META: 68656C6C6F776F726C6400000000 LSF_CRC_OK
FN: 0041 PLD: 00000000000000000000000000000000
FN: 0042 PLD: 00000000000000000000000000000000
FN: 0043 PLD: 00000000000000000000000000000000
FN: 009A PLD: 00000000000000000000000000000000
FN: 009B PLD: 00000000000000000000000000000000
FN: 009C PLD: 00000000000000000000000000000000
FN: 009D PLD: 00000000000000000000000000000000
FN: 009E PLD: 00000000000000000000000000000000
